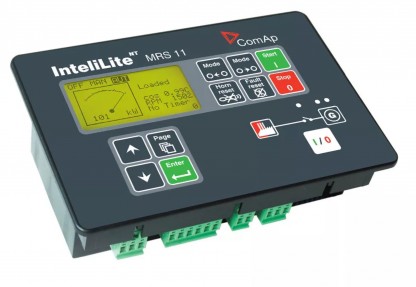

InteliLite NT MRS 11 Gen-Set Controller
InteliLite NT MRS 11 Gen-Set Controller
Features
Compact gen-set controller for single operating genset Manual and remote start (MRS) applications
Full gen-set monitoring and protection
Running hours event and performance log
Multiple languages (user changeable) in controller, even more in installation suite
Plug-in extension modules capability
WebSupervisor, AirGate and LOCATE support*
Automatic SMS on alarm or event & gen-set control over SMS*
On-line control and monitoring over web pages (embedded web server) via plug & play IB-Lite
Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS
Fuel theft protection
Alternative switchable configuration
Automatic and manual GCB control
Magnetic pickup input
D+ preexcitation terminal
True RMS measurement
3 phase power measurement
3 configurable analog inputs
6 binary inputs
6 binary outputs
* Plug-in module required
Notera:
Key: l included / – excluded
1) Manual/Automatic GCB control, but without feedback
2) Automatic GCB control without feedback
3) AT-LINK CONV cable necessary
4) CAN for extension modules
Legend: IG-IOM/IGS-PTM: I/O extension modules
IGL-RA15: Remote annunciator
I-RD: Remote display
» InteliLite MRS 11 Product Leaflet
Features
Compact gen-set controller for single operating genset Manual and remote start (MRS) applications
Full gen-set monitoring and protection
Running hours event and performance log
Multiple languages (user changeable) in controller, even more in installation suite
Plug-in extension modules capability
WebSupervisor, AirGate and LOCATE support*
Automatic SMS on alarm or event & gen-set control over SMS*
On-line control and monitoring over web pages (embedded web server) via plug & play IB-Lite
Optional GSM/GPRS modem/wireless Internet via IL-NT GPRS
Fuel theft protection
Alternative switchable configuration
Automatic and manual GCB control
Magnetic pickup input
D+ preexcitation terminal
True RMS measurement
3 phase power measurement
3 configurable analog inputs
6 binary inputs
6 binary outputs
* Plug-in module required
|
Technical Data |
|
| Binary inputs/outputs | 6 / 6 |
| Analog inputs | 3 |
| Pick-up | • |
| AMF function | - |
| Input configuration | • |
| Output configuration | • |
| Voltage measurement Gen. / Mains | 3 ph / – |
| Current measurement | 3 ph |
| kW/kWh measurement | •/- |
| GCB/MCB control with feedback | •1)/- |
| Extension units (periph.) | - |
| Communication interfaces | RS2323) |
| Modem support | - |
| Battery charging alternator circuit | • |
Notera:
Key: l included / – excluded
1) Manual/Automatic GCB control, but without feedback
2) Automatic GCB control without feedback
3) AT-LINK CONV cable necessary
4) CAN for extension modules
Legend: IG-IOM/IGS-PTM: I/O extension modules
IGL-RA15: Remote annunciator
I-RD: Remote display
» InteliLite MRS 11 Product Leaflet
